Crazyflie Drone

Simulink Architecture

The Crazyflie is a nano quadcopter developed by Bitcraze, widely used for research and education in aerial robotics. This simulation provides a comprehensive platform for developing and testing quadcopter control algorithms using Simulink.

---

System Overview

The Crazyflie quadcopter is a compact, lightweight aerial platform ideal for indoor flight experiments and control system development. The Webots simulation accurately models the vehicle dynamics and sensor characteristics.

Key Features

• Nano Quadcopter Design: Compact and lightweight for indoor operations
• Full 6-DOF Control: Complete attitude and position control
• Multiple Sensors: IMU, GPS, gyroscope, camera, and range finders
• State-Space Model: Pre-configured dynamics for controller design
• Obstacle Detection: Four-directional range sensors

Specifications

Parameter	Value
Weight	35g
Dimensions	9 x 9 x 4.5 cm
Motors	4 x Coreless DC motors (m1-m4)
Propellers	3-inch propellers
Configuration	X-configuration quadcopter

---

Physical Parameters

The simulation uses accurate physical parameters for realistic dynamics:

% Physical constants
g = 9.80665;              % Gravity [m/s²]
l1 = 0.0465;              % Arm length X [m]
l2 = 0.045;               % Arm length Y [m]
m_drone = 0.03097;        % Mass [kg]

% Inertia tensor components
Ix = 1.112951e-5;         % Roll inertia [kg*m²]
Iy = 1.1143608e-5;        % Pitch inertia [kg*m²]
Iz = 2.162056e-5;         % Yaw inertia [kg*m²]

% Damping coefficients
b_roll = 1e-5;            % Angular damping (roll)
b_pitch = 1e-5;           % Angular damping (pitch)
b_yaw = 1e-5;             % Angular damping (yaw)
b_drone = 1e-9;           % Translational damping

% Motor parameters
km = 3.5077E-10;          % Thrust coefficient

---

Components

Motors

Motor	Device Name	Position
Motor 1	m1_motor	Front-right (CCW)
Motor 2	m2_motor	Back-right (CW)
Motor 3	m3_motor	Back-left (CCW)
Motor 4	m4_motor	Front-left (CW)

Sensors

Sensor	Device Name	Description
Inertial Unit	inertial unit	Roll, pitch, yaw orientation
GPS	gps	3D position (x, y, z)
Gyroscope	gyro	Angular velocity (p, q, r)
Camera	camera	Visual sensing

Range Sensors

Sensor	Device Name	Direction
Front Range	range_front	+X direction
Left Range	range_left	+Y direction
Back Range	range_back	-X direction
Right Range	range_right	-Y direction

---

State-Space Model

The Crazyflie dynamics are modeled using state-space representation for controller design.

State Vector

x = [roll, pitch, yaw, p, q, r, z, vz]ᵀ

Where: - roll, pitch, yaw: Euler angles [rad] - p, q, r: Angular velocities [rad/s] - z: Altitude [m] - vz: Vertical velocity [m/s]

Input Vector

u = [thrust, roll_moment, pitch_moment, yaw_moment]ᵀ

State-Space Matrices

% A matrix (8x8) - System dynamics
A = zeros(8,8);
A(1:3, 4:6) = eye(3);           % Angle-rate coupling
A(4,4) = -b_roll/Ix;            % Roll damping
A(5,5) = -b_pitch/Iy;           % Pitch damping
A(6,6) = -b_yaw/Iz;             % Yaw damping
A(7,8) = 1;                     % Altitude-velocity coupling
A(8,8) = -b_drone/m_drone;      % Vertical damping

% B matrix (8x4) - Input mapping
B = zeros(8,4);
B(4,2) = l1/Ix;                 % Roll moment input
B(5,3) = l2/Iy;                 % Pitch moment input
B(6,4) = 1/Iz;                  % Yaw moment input
B(8,1) = 1/m_drone;             % Thrust input

% C matrix - Full state output
C = eye(8);

% D matrix - No direct feedthrough
D = zeros(8,4);

---

Simulink Integration

Available MATLAB Functions

Motor Control:

wb_motor_set_velocity(tag, velocity)    % Set motor speed
wb_motor_set_position(tag, position)    % Set motor position
wb_motor_set_torque(tag, torque)        % Set motor torque

Sensor Reading:

wb_inertial_unit_get_roll_pitch_yaw(tag) % Get orientation [roll, pitch, yaw]
wb_gps_get_values(tag)                   % Get position [x, y, z]
wb_gyro_get_values(tag)                  % Get angular rates [p, q, r]
wb_distance_sensor_get_value(tag)        % Get range sensor distance
wb_camera_get_image(tag)                 % Get camera image

Simulation Control:

wb_robot_step(TIME_STEP)                 % Advance simulation

Initialization Script

TIME_STEP = 16;

% Initialize IMU
imu = wb_robot_get_device('inertial unit');
wb_inertial_unit_enable(imu, TIME_STEP);

% Initialize GPS
gps = wb_robot_get_device('gps');
wb_gps_enable(gps, TIME_STEP);

% Initialize Gyroscope
gyro = wb_robot_get_device('gyro');
wb_gyro_enable(gyro, TIME_STEP);

% Initialize Camera
camera = wb_robot_get_device('camera');
wb_camera_enable(camera, TIME_STEP);

% Initialize Range Sensors
range_front = wb_robot_get_device('range_front');
wb_distance_sensor_enable(range_front, TIME_STEP);

range_left = wb_robot_get_device('range_left');
wb_distance_sensor_enable(range_left, TIME_STEP);

range_back = wb_robot_get_device('range_back');
wb_distance_sensor_enable(range_back, TIME_STEP);

range_right = wb_robot_get_device('range_right');
wb_distance_sensor_enable(range_right, TIME_STEP);

% Initialize Motors
m1_motor = wb_robot_get_device('m1_motor');
m2_motor = wb_robot_get_device('m2_motor');
m3_motor = wb_robot_get_device('m3_motor');
m4_motor = wb_robot_get_device('m4_motor');

---

Control System Design

System Block Diagram

flowchart TB
    subgraph Reference["Reference Inputs"]
        R1[/"Position<br/>(x_d, y_d, z_d)"/]
        R2[/"Yaw<br/>(ψ_d)"/]
    end

    subgraph Control["Cascaded Control System"]
        subgraph OuterLoop["Outer Loop - Position"]
            PC[Position<br/>Controller]
        end
        subgraph MiddleLoop["Middle Loop - Attitude"]
            AC[Attitude<br/>Controller]
        end
        subgraph InnerLoop["Inner Loop - Rate"]
            RC[Rate<br/>Controller]
        end
    end

    subgraph Mixer["Motor Mixer"]
        MIX[X-Config<br/>Mixing]
    end

    subgraph Motors["Motors"]
        M1[M1<br/>Front-Right]
        M2[M2<br/>Back-Right]
        M3[M3<br/>Back-Left]
        M4[M4<br/>Front-Left]
    end

    subgraph Plant["Crazyflie Quadcopter"]
        QUAD[Vehicle<br/>Dynamics]
    end

    subgraph Sensors["Sensor Suite"]
        IMU_S[IMU]
        GPS_S[GPS]
        GYRO_S[Gyro]
        RANGE[Range<br/>Sensors]
    end

    R1 --> PC
    R2 --> AC
    PC --> AC
    AC --> RC
    RC --> MIX

    MIX --> M1
    MIX --> M2
    MIX --> M3
    MIX --> M4

    M1 --> QUAD
    M2 --> QUAD
    M3 --> QUAD
    M4 --> QUAD

    QUAD --> IMU_S
    QUAD --> GPS_S
    QUAD --> GYRO_S
    QUAD --> RANGE

    IMU_S --> AC
    GPS_S --> PC
    GYRO_S --> RC
    RANGE --> PC

    style Reference fill:#e1f5fe
    style Control fill:#e8f5e9
    style Mixer fill:#fff8e1
    style Motors fill:#ffebee
    style Plant fill:#fce4ec
    style Sensors fill:#f3e5f5

Cascaded Control Architecture

flowchart LR
    subgraph Position["Position Control (10 Hz)"]
        POS_D[/"x_d, y_d, z_d"/]
        POS[/"x, y, z"/]
        POS_ERR((Δ))
        POS_CTRL[Position PID]
        ATT_CMD["φ_d, θ_d, T"]

        POS_D --> POS_ERR
        POS --> POS_ERR
        POS_ERR --> POS_CTRL
        POS_CTRL --> ATT_CMD
    end

    subgraph Attitude["Attitude Control (250 Hz)"]
        ATT_D[/"φ_d, θ_d, ψ_d"/]
        ATT[/"φ, θ, ψ"/]
        ATT_ERR((Δ))
        ATT_CTRL[Attitude PID]
        RATE_CMD["p_d, q_d, r_d"]

        ATT_CMD --> ATT_D
        ATT_D --> ATT_ERR
        ATT --> ATT_ERR
        ATT_ERR --> ATT_CTRL
        ATT_CTRL --> RATE_CMD
    end

    subgraph Rate["Rate Control (500 Hz)"]
        RATE_D[/"p_d, q_d, r_d"/]
        RATE[/"p, q, r"/]
        RATE_ERR((Δ))
        RATE_CTRL[Rate PID]
        MOMENT["τ_φ, τ_θ, τ_ψ"]

        RATE_CMD --> RATE_D
        RATE_D --> RATE_ERR
        RATE --> RATE_ERR
        RATE_ERR --> RATE_CTRL
        RATE_CTRL --> MOMENT
    end

    style Position fill:#e3f2fd
    style Attitude fill:#fff3e0
    style Rate fill:#e8f5e9

Motor Mixing (X-Configuration)

flowchart TB
    subgraph MixerInput["Control Commands"]
        T["Thrust (T)"]
        TAU_PHI["Roll Moment (τ_φ)"]
        TAU_THETA["Pitch Moment (τ_θ)"]
        TAU_PSI["Yaw Moment (τ_ψ)"]
    end

    subgraph MixingMatrix["X-Configuration Mixing"]
        MIX["Motor Mixing Matrix"]
    end

    subgraph MotorOut["Motor Commands"]
        W1["ω₁ = T + τ_φ - τ_θ - τ_ψ"]
        W2["ω₂ = T - τ_φ - τ_θ + τ_ψ"]
        W3["ω₃ = T - τ_φ + τ_θ - τ_ψ"]
        W4["ω₄ = T + τ_φ + τ_θ + τ_ψ"]
    end

    subgraph Layout["Motor Layout (Top View)"]
        L1["    M4(CCW)   M1(CW)    "]
        L2["        ╲   ╱           "]
        L3["         ╲ ╱            "]
        L4["          ×             "]
        L5["         ╱ ╲            "]
        L6["        ╱   ╲           "]
        L7["    M3(CW)   M2(CCW)   "]
    end

    T --> MIX
    TAU_PHI --> MIX
    TAU_THETA --> MIX
    TAU_PSI --> MIX

    MIX --> W1
    MIX --> W2
    MIX --> W3
    MIX --> W4

    style MixerInput fill:#e1f5fe
    style MixingMatrix fill:#fff8e1
    style MotorOut fill:#e8f5e9
    style Layout fill:#f5f5f5

Control Loop Details

flowchart TB
    subgraph AltitudeControl["Altitude Control"]
        Z_D[/"z_d"/]
        Z[/"z"/]
        VZ[/"v_z"/]
        ERR_Z((+<br/>-))
        PID_Z[PID<br/>Kp=50, Ki=5, Kd=15]
        THRUST["Thrust Command"]

        Z_D --> ERR_Z
        Z --> ERR_Z
        ERR_Z --> PID_Z
        VZ --> PID_Z
        PID_Z --> THRUST
    end

    subgraph AttitudeLoop["Attitude Loop (Roll Example)"]
        PHI_D[/"φ_d"/]
        PHI[/"φ"/]
        P[/"p"/]
        ERR_PHI((+<br/>-))
        PID_PHI[PID<br/>Kp=25, Ki=1, Kd=8]
        TAU_ROLL["τ_φ"]

        PHI_D --> ERR_PHI
        PHI --> ERR_PHI
        ERR_PHI --> PID_PHI
        P --> PID_PHI
        PID_PHI --> TAU_ROLL
    end

    THRUST --> MIXER[Motor<br/>Mixer]
    TAU_ROLL --> MIXER

    style AltitudeControl fill:#e3f2fd
    style AttitudeLoop fill:#f3e5f5

Attitude Control

The inner loop controls roll, pitch, and yaw using PID controllers:

% PID gains for attitude control
Kp_roll = 25;   Ki_roll = 1;    Kd_roll = 8;
Kp_pitch = 25;  Ki_pitch = 1;   Kd_pitch = 8;
Kp_yaw = 10;    Ki_yaw = 0.5;   Kd_yaw = 2;

% Attitude controller
function [roll_cmd, pitch_cmd, yaw_cmd] = attitude_control(current, desired)
    roll_error = desired.roll - current.roll;
    pitch_error = desired.pitch - current.pitch;
    yaw_error = desired.yaw - current.yaw;

    roll_cmd = Kp_roll * roll_error + Kd_roll * (0 - current.p);
    pitch_cmd = Kp_pitch * pitch_error + Kd_pitch * (0 - current.q);
    yaw_cmd = Kp_yaw * yaw_error + Kd_yaw * (0 - current.r);
end

Altitude Control

Outer loop for altitude hold:

% PID gains for altitude control
Kp_z = 50;  Ki_z = 5;  Kd_z = 15;

% Altitude controller
function thrust = altitude_control(z_current, z_desired, vz_current)
    z_error = z_desired - z_current;
    thrust = m_drone * g + Kp_z * z_error + Kd_z * (0 - vz_current);
    thrust = max(0, min(thrust, max_thrust));  % Saturation
end

Motor Mixing

Convert control commands to individual motor speeds:

function [w1, w2, w3, w4] = motor_mixing(thrust, roll_cmd, pitch_cmd, yaw_cmd)
    % X-configuration mixing
    w1 = thrust + roll_cmd - pitch_cmd - yaw_cmd;  % Front-right
    w2 = thrust - roll_cmd - pitch_cmd + yaw_cmd;  % Back-right
    w3 = thrust - roll_cmd + pitch_cmd - yaw_cmd;  % Back-left
    w4 = thrust + roll_cmd + pitch_cmd + yaw_cmd;  % Front-left

    % Apply motor limits
    w1 = max(0, min(w1, max_motor_speed));
    w2 = max(0, min(w2, max_motor_speed));
    w3 = max(0, min(w3, max_motor_speed));
    w4 = max(0, min(w4, max_motor_speed));
end

---

Usage Examples

Basic Operation

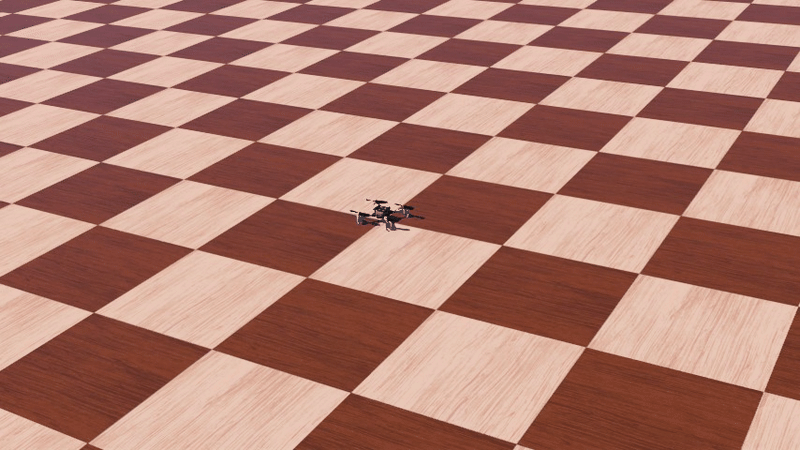

1. Load World: Open crazyflie/worlds/crazyflie_control.wbt in Webots
2. Set Controller: Select crazyflie_simulink_control as the controller
3. Open Simulink: Load simulink_control.slx in MATLAB
4. Run Simulation: Start both Webots and Simulink

Hover Control Example

% Simple hover controller
desired_altitude = 1.0;  % meters
desired_yaw = 0;         % radians

while wb_robot_step(TIME_STEP) ~= -1
    % Read sensors
    orientation = wb_inertial_unit_get_roll_pitch_yaw(imu);
    position = wb_gps_get_values(gps);
    angular_rates = wb_gyro_get_values(gyro);

    % Compute control
    thrust = altitude_control(position(3), desired_altitude, angular_rates(3));
    [roll_cmd, pitch_cmd, yaw_cmd] = attitude_control(...);

    % Motor mixing
    [w1, w2, w3, w4] = motor_mixing(thrust, roll_cmd, pitch_cmd, yaw_cmd);

    % Apply motor commands
    wb_motor_set_velocity(m1_motor, w1);
    wb_motor_set_velocity(m2_motor, w2);
    wb_motor_set_velocity(m3_motor, w3);
    wb_motor_set_velocity(m4_motor, w4);
end

Position Control

Cascade control structure for waypoint navigation:

% Position controller (outer loop)
function [roll_des, pitch_des] = position_control(pos_current, pos_desired, yaw)
    % Position error in world frame
    ex = pos_desired(1) - pos_current(1);
    ey = pos_desired(2) - pos_current(2);

    % Transform to body frame
    ex_body = cos(yaw) * ex + sin(yaw) * ey;
    ey_body = -sin(yaw) * ex + cos(yaw) * ey;

    % Desired attitude commands
    pitch_des = Kp_pos * ex_body;
    roll_des = -Kp_pos * ey_body;

    % Limit angles
    pitch_des = max(-max_angle, min(pitch_des, max_angle));
    roll_des = max(-max_angle, min(roll_des, max_angle));
end

---

Applications

Research Applications

• Control Algorithm Development: Test new attitude and position controllers
• State Estimation: Implement sensor fusion algorithms
• Path Planning: Develop trajectory generation and following
• Swarm Robotics: Multi-quadcopter coordination studies

Educational Applications

• Flight Dynamics: Understanding quadcopter physics
• Control Systems: PID, LQR, and model predictive control
• Sensor Fusion: Complementary and Kalman filtering
• Embedded Systems: Real-time control implementation

---

File Structure

crazyflie/
├── controllers/
│   └── crazyflie_simulink_control/    # Simulink integration
│       ├── crazyflie_simulink_control.m  # Initialization with state-space model
│       ├── simulink_control.slx          # Main Simulink model
│       └── wb_*.m                        # MATLAB wrapper functions
└── worlds/
    └── crazyflie_control.wbt             # Webots world file

---

References

• Bitcraze Crazyflie
• MATLAB Crazyflie Simulation
• Quadcopter Dynamics and Control
• Webots Crazyflie Model

Educational Purpose: The Crazyflie simulation provides an excellent platform for learning quadcopter dynamics, control system design, and sensor integration. The state-space model enables rigorous controller design using modern control techniques including LQR, pole placement, and model predictive control.
