Pirana USV

The Pirana USV (Unmanned Surface Vehicle) is a versatile autonomous marine platform developed by MKE (Mechanical and Chemical Industry Corporation) for various surface operations. Designed for both civilian and defense applications, the Pirana USV features advanced navigation, remote control capabilities, and modular payload options.

---

System Overview

The Pirana is a single-hull unmanned surface vehicle featuring a steerable propulsion system that provides both thrust and directional control. The simulation includes realistic water dynamics and obstacle avoidance scenarios.

Key Features

• Autonomous Navigation: GPS and IMU-based path following
• Steerable Propulsion: Combined thrust and steering motor system
• Sensor Suite: Accelerometer, gyroscope, GPS, and inertial unit
• Fluid Dynamics: Realistic water simulation with viscosity and damping
• Obstacle Scenarios: Oil barrel obstacles for collision avoidance testing

Specifications

Parameter	Value
Control Type	Steerable propeller
Propulsion	Single rotational motor with propeller
Steering	Rotational motor for propeller direction
Fluid Viscosity	0.01 (water simulation)
Physics Density	450 kg/m³

---

Components

Propulsion System

Component	Device Name	Description
Steering Motor	rotational_motor	Controls propeller direction
Propeller Motor	rotational_motor_propeller	Provides thrust
Position Sensor	position_sensor	Steering angle feedback

Sensors

Sensor	Device Name	Description
Accelerometer	accelerometer	3-axis linear acceleration
Gyroscope	gyro	3-axis angular velocity
GPS	gps	Global positioning
Inertial Unit	inertial_unit	Roll, pitch, yaw orientation
Compass	compass	Magnetic heading

---

Simulink Integration

Available MATLAB Functions

Motor Control:

wb_motor_set_velocity(tag, velocity)    % Set motor speed
wb_motor_set_position(tag, position)    % Set steering angle
wb_motor_set_torque(tag, torque)        % Set motor torque

Sensor Reading:

wb_accelerometer_get_values(tag)        % Get acceleration [x, y, z]
wb_gyro_get_values(tag)                 % Get angular velocity [x, y, z]
wb_gps_get_values(tag)                  % Get GPS position [x, y, z]
wb_inertial_unit_get_roll_pitch_yaw(tag) % Get orientation [roll, pitch, yaw]

Simulation Control:

wb_robot_step(TIME_STEP)                % Advance simulation

Initialization Script

The simulink_control_app.m initializes the Pirana system:

TIME_STEP = 16;

% Filter coefficients for sensor smoothing
alpha_pitch = 0.85;
alpha_roll = 0.85;
alpha_yaw = 0.85;

% Initialize sensors
accelerometer_sensor = wb_robot_get_device('accelerometer');
wb_accelerometer_enable(accelerometer_sensor, TIME_STEP);

gyro_sensor = wb_robot_get_device('gyro');
wb_gyro_enable(gyro_sensor, TIME_STEP);

gps_sensor = wb_robot_get_device('gps');
wb_gps_enable(gps_sensor, TIME_STEP);

inertial_unit = wb_robot_get_device('inertial_unit');
wb_inertial_unit_enable(inertial_unit, TIME_STEP);

% Initialize motors
rotational_motor = wb_robot_get_device('rotational_motor');
rotational_motor_propeller = wb_robot_get_device('rotational_motor_propeller');

% Steering position sensor
position_sensor = wb_robot_get_device('position_sensor');

% Load Simulink model
open_system('simulink_control');
load_system('simulink_control');

---

Control System Design

System Block Diagram

flowchart TB
    subgraph Reference["Reference Inputs"]
        R1[/"Position Target<br/>(x_d, y_d)"/]
        R2[/"Heading Target<br/>(ψ_d)"/]
        R3[/"Speed Target<br/>(v_d)"/]
    end

    subgraph Guidance["Guidance System"]
        WP[Waypoint<br/>Manager]
        LOS[Line-of-Sight<br/>Guidance]
    end

    subgraph Navigation["Navigation System"]
        GPS[GPS]
        IMU[IMU]
        IU[Inertial<br/>Unit]
        COMP[Compass]
        FUSE[Sensor<br/>Fusion]
    end

    subgraph Control["Control System"]
        subgraph Heading["Heading Control"]
            HC[Heading<br/>Controller]
        end
        subgraph Speed["Speed Control"]
            SC[Speed<br/>Controller]
        end
    end

    subgraph Actuators["Steerable Propulsion"]
        STEER[Steering<br/>Motor]
        PROP[Propeller<br/>Motor]
    end

    subgraph Plant["Pirana USV"]
        USV[Vehicle<br/>Dynamics]
    end

    R1 --> WP
    WP --> LOS
    LOS --> HC
    R2 --> HC
    R3 --> SC

    GPS --> FUSE
    IMU --> FUSE
    IU --> FUSE
    COMP --> FUSE

    FUSE --> HC
    FUSE --> SC
    FUSE --> LOS

    HC --> STEER
    SC --> PROP

    STEER --> USV
    PROP --> USV

    USV --> GPS
    USV --> IMU
    USV --> IU
    USV --> COMP

    style Reference fill:#e1f5fe
    style Guidance fill:#fff3e0
    style Navigation fill:#f3e5f5
    style Control fill:#e8f5e9
    style Actuators fill:#ffebee
    style Plant fill:#fce4ec

State-Space Model

flowchart LR
    subgraph Inputs["Control Inputs u"]
        U1["δ (Steering Angle)"]
        U2["n (Propeller RPM)"]
    end

    subgraph StateSpace["State-Space Model<br/>ẋ = Ax + Bu"]
        subgraph States["State Vector x"]
            S1["x - North Position"]
            S2["y - East Position"]
            S3["ψ - Heading"]
            S4["u - Surge Velocity"]
            S5["v - Sway Velocity"]
            S6["r - Yaw Rate"]
        end
    end

    subgraph Outputs["Outputs y"]
        Y1["Position (x, y)"]
        Y2["Heading (ψ)"]
        Y3["Velocities"]
    end

    Inputs --> StateSpace
    StateSpace --> Outputs

    style Inputs fill:#ffcdd2
    style StateSpace fill:#c8e6c9
    style Outputs fill:#bbdefb

Steerable Propeller Kinematics

flowchart TB
    subgraph SteerableProp["Steerable Propeller System"]
        subgraph ThrustGen["Thrust Generation"]
            T1["Thrust: T = ρ·n²·D⁴·K_T"]
            T2["Thrust Components:<br/>X = T·cos(δ)<br/>Y = T·sin(δ)"]
        end

        subgraph Moment["Yaw Moment"]
            M1["N = T·sin(δ)·l_p"]
            M2["l_p = distance to propeller"]
        end

        subgraph Control["Control Mapping"]
            C1["δ: Steering motor position"]
            C2["n: Propeller motor velocity"]
        end
    end

    ThrustGen --> Moment
    Control --> ThrustGen

    style SteerableProp fill:#e8f5e9

State-Space Matrices

%% Pirana USV State-Space Model
% State vector: x = [x, y, psi, u, v, r]'
% Input vector: u = [delta, n]' (steering angle, propeller RPM)

% Physical Parameters
m = 50;               % Mass [kg]
Iz = 15;              % Yaw moment of inertia [kg*m^2]
l_p = 0.8;            % Distance to propeller [m]

% Hydrodynamic parameters
Xu = -10;             % Surge damping [N*s/m]
Yv = -30;             % Sway damping [N*s/m]
Nr = -5;              % Yaw damping [N*m*s/rad]

% Added mass
Xu_dot = -5;          % Surge added mass [kg]
Yv_dot = -20;         % Sway added mass [kg]
Nr_dot = -3;          % Yaw added mass [kg*m^2]

% Effective parameters
m_u = m - Xu_dot;
m_v = m - Yv_dot;
Iz_r = Iz - Nr_dot;

% Propeller parameters
rho = 1000;           % Water density [kg/m^3]
D = 0.15;             % Propeller diameter [m]
K_T = 0.4;            % Thrust coefficient

% Linearized model at operating point (delta_0=0, n_0=10 rps)
delta_0 = 0;
n_0 = 10;
T_0 = rho * n_0^2 * D^4 * K_T;  % Nominal thrust

% A matrix (6x6)
A = [0, 0, 0, 1, 0, 0;
     0, 0, 0, 0, 1, 0;
     0, 0, 0, 0, 0, 1;
     0, 0, 0, Xu/m_u, 0, 0;
     0, 0, 0, 0, Yv/m_v, 0;
     0, 0, 0, 0, 0, Nr/Iz_r];

% B matrix (6x2) - Linearized input
% dT/ddelta = T_0 (for small delta)
% dT/dn = 2*rho*n_0*D^4*K_T

dT_ddelta = T_0;
dT_dn = 2 * rho * n_0 * D^4 * K_T;

B = [0, 0;
     0, 0;
     0, 0;
     0, dT_dn/m_u;
     dT_ddelta/m_v, 0;
     dT_ddelta*l_p/Iz_r, 0];

% C matrix
C = eye(6);

% D matrix
D = zeros(6, 2);

% Create state-space system
sys = ss(A, B, C, D);
sys.StateName = {'x', 'y', 'psi', 'u', 'v', 'r'};
sys.InputName = {'delta', 'n'};

Control Loop Architecture

flowchart TB
    subgraph HeadingLoop["Heading Control Loop"]
        PSI_D[/"ψ_d"/]
        PSI[/"ψ"/]
        ERR_H((+<br/>-))
        PID_H[PID<br/>Kp=1.0, Ki=0.1, Kd=0.5]
        DELTA["δ (Steering)"]

        PSI_D --> ERR_H
        PSI --> ERR_H
        ERR_H --> PID_H
        PID_H --> DELTA
    end

    subgraph SpeedLoop["Speed Control Loop"]
        V_D[/"v_d"/]
        V[/"v"/]
        ERR_S((+<br/>-))
        PID_S[PID<br/>Kp=50, Ki=5, Kd=10]
        N["n (Propeller RPM)"]

        V_D --> ERR_S
        V --> ERR_S
        ERR_S --> PID_S
        PID_S --> N
    end

    subgraph Filtering["Sensor Filtering"]
        FILT["Complementary Filter<br/>α = 0.85"]
        RAW["Raw IMU Data"]
        FILTERED["Filtered Orientation"]

        RAW --> FILT
        FILT --> FILTERED
    end

    FILTERED --> PSI
    FILTERED --> V

    style HeadingLoop fill:#e3f2fd
    style SpeedLoop fill:#f3e5f5
    style Filtering fill:#fff8e1

Line-of-Sight Guidance

flowchart LR
    subgraph LOSGuidance["LOS Waypoint Navigation"]
        POS["Current Position<br/>(x, y)"]
        WP["Target Waypoint<br/>(x_wp, y_wp)"]

        BEARING["Bearing to WP<br/>χ = atan2(y_wp-y, x_wp-x)"]

        CROSS["Cross-Track Error<br/>e_ct"]

        LOS["LOS Angle<br/>χ_los = χ + atan(-e_ct/Δ)"]

        HEAD["Desired Heading<br/>ψ_d = χ_los"]
    end

    POS --> BEARING
    WP --> BEARING
    POS --> CROSS
    BEARING --> LOS
    CROSS --> LOS
    LOS --> HEAD

    style LOSGuidance fill:#e8f5e9

Steerable Propulsion Control

The Pirana uses a unique steerable propeller system where:

1. Steering Motor (rotational_motor): Rotates the propeller housing to change thrust direction
2. Propeller Motor (rotational_motor_propeller): Provides forward/reverse thrust

% Example control logic
function [steer_cmd, thrust_cmd] = heading_control(current_heading, desired_heading, speed)
    % Heading error
    heading_error = desired_heading - current_heading;

    % Steering command (P controller)
    Kp_steer = 1.0;
    steer_cmd = Kp_steer * heading_error;
    steer_cmd = max(min(steer_cmd, 0.5), -0.5);  % Limit steering angle

    % Thrust command
    thrust_cmd = speed;
end

Sensor Filtering

The initialization includes low-pass filter coefficients for sensor smoothing:

% Complementary filter for orientation
alpha = 0.85;
filtered_value = alpha * sensor_value + (1 - alpha) * previous_filtered;

Marine Vehicle Dynamics

The simulation includes realistic marine dynamics:

• Fluid viscosity: 0.01 for water-like behavior
• Linear damping: 0.5 for hull resistance
• Angular damping: 0.6 for rotational resistance
• Center of mass: Lowered for stability

---

Usage Examples

Basic Operation

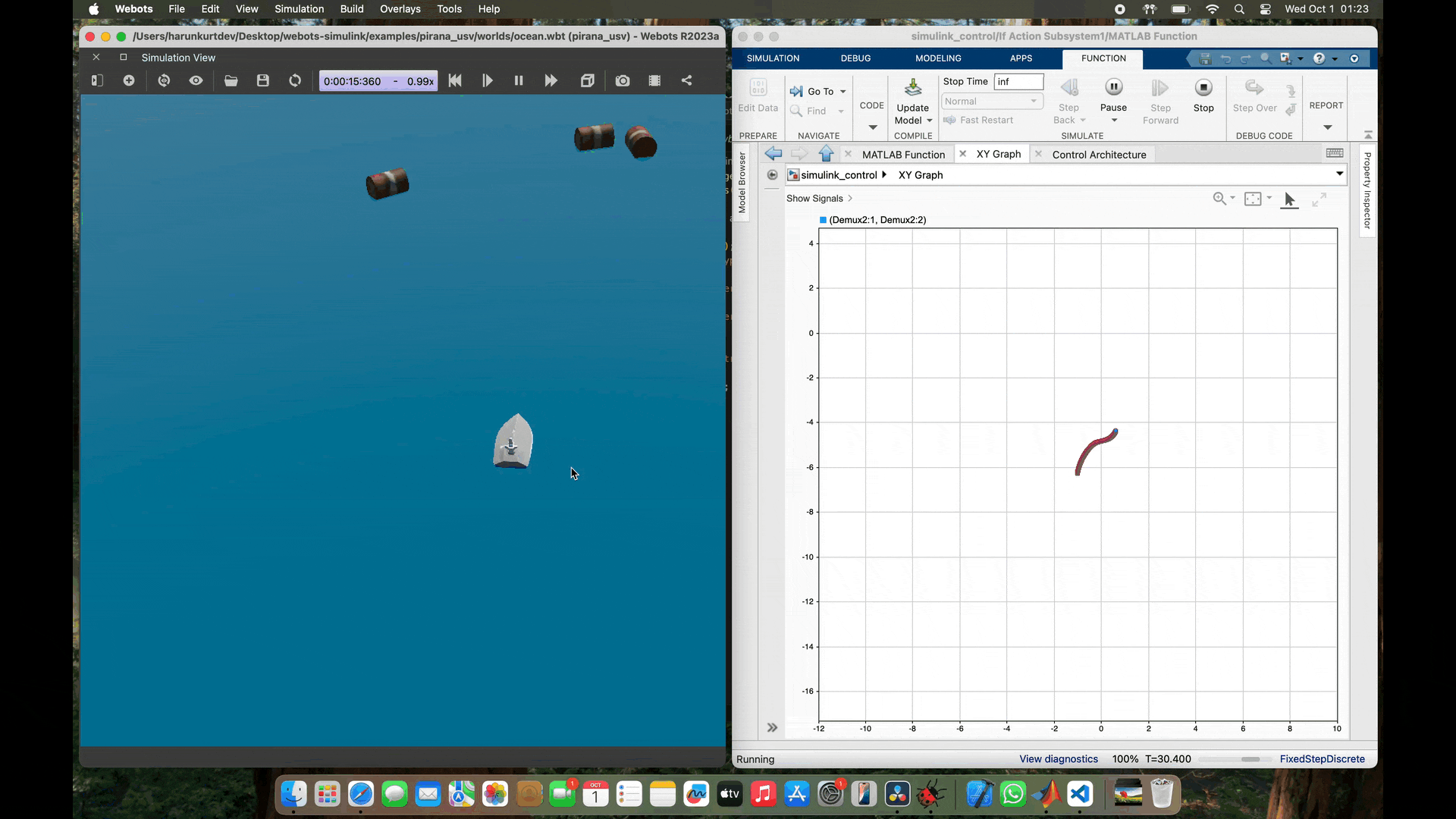

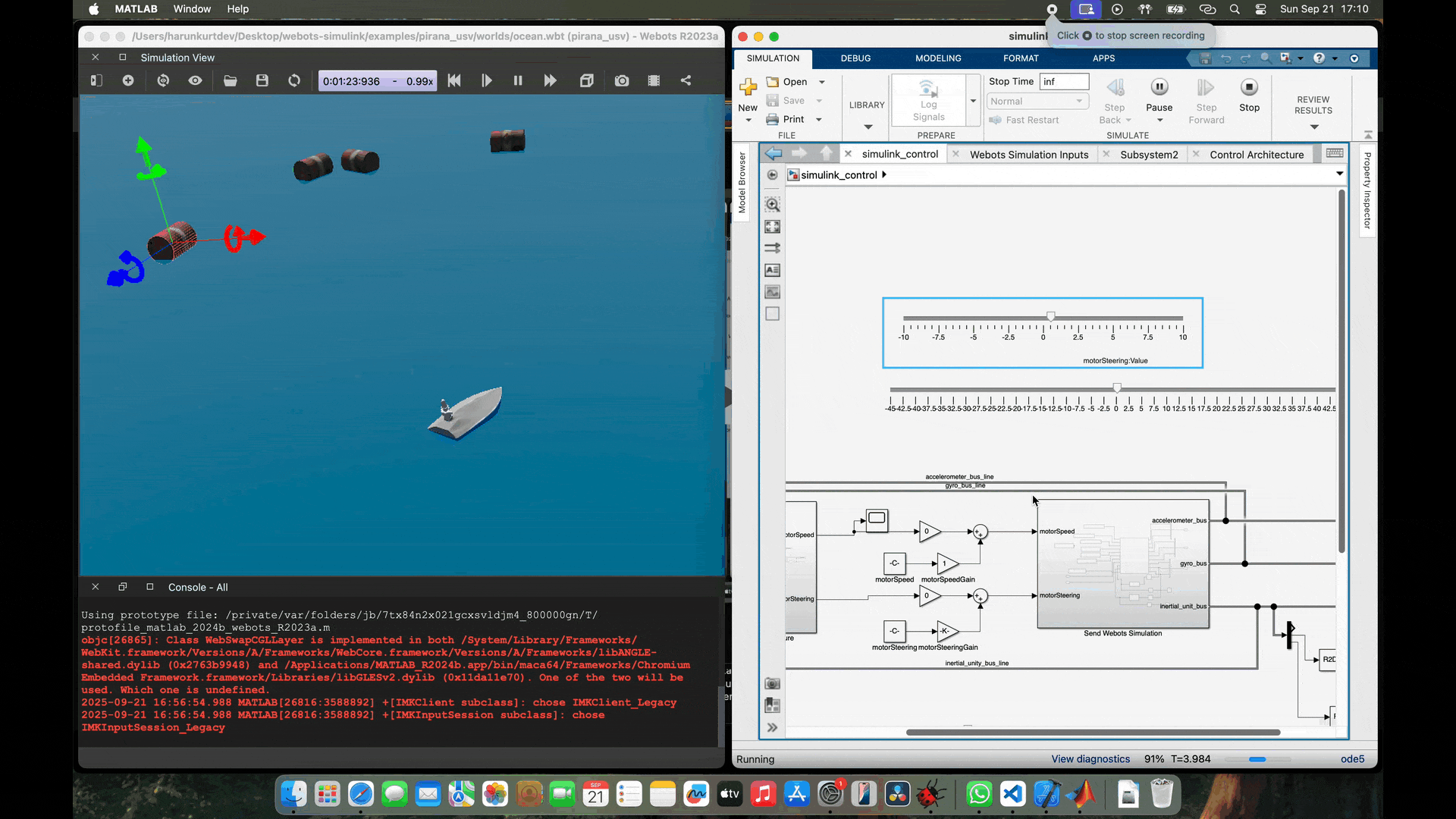

1. Load World: Open pirana_usv/worlds/ocean.wbt in Webots
2. Set Controller: Verify simulink_control_app is selected
3. Open Simulink: Load simulink_control.slx in MATLAB
4. Run Simulation: Start both Webots and Simulink

Waypoint Navigation Example

% Define waypoints (GPS coordinates)
waypoints = [
    0, 0;      % Start
    10, 0;     % Point 1
    10, 10;    % Point 2
    0, 10;     % Point 3
    0, 0       % Return
];

% Navigation loop
for i = 1:size(waypoints, 1)
    target = waypoints(i, :);
    while ~reached(target)
        current_pos = wb_gps_get_values(gps_sensor);
        heading = wb_inertial_unit_get_roll_pitch_yaw(inertial_unit);

        [steer, thrust] = compute_control(current_pos, heading, target);

        wb_motor_set_position(rotational_motor, steer);
        wb_motor_set_velocity(rotational_motor_propeller, thrust);

        wb_robot_step(TIME_STEP);
    end
end

Obstacle Avoidance

The world includes oil barrel obstacles for testing collision avoidance:

% Simple distance-based avoidance
function avoid_obstacle(gps_pos, obstacle_pos)
    distance = norm(gps_pos(1:2) - obstacle_pos);
    if distance < SAFETY_RADIUS
        % Execute avoidance maneuver
        steer_away();
    end
end

---

Applications

Defense and Security

• Surveillance: Coastal and harbor monitoring
• Reconnaissance: Intelligence gathering
• Maritime Security: Patrol and inspection

Civilian Applications

• Environmental Monitoring: Water quality assessment
• Search and Rescue: Surface search operations
• Research: Marine data collection

Educational Use

• Marine Robotics: USV control concepts
• Control Systems: Heading and path controllers
• Sensor Fusion: GPS/IMU integration

---

File Structure

pirana_usv/
├── controllers/
│   ├── pirana_controller/           # Python keyboard controller
│   │   └── pirana_controller.py
│   └── simulink_control_app/        # Simulink integration
│       ├── simulink_control_app.m   # Initialization script
│       ├── simulink_control.slx     # Main Simulink model
│       ├── state_space_modeling.slx # State-space model
│       └── wb_*.m                   # MATLAB wrapper functions
└── worlds/
    └── ocean.wbt                    # Webots world with water simulation

---

References

• MKE Pirana USV
• Marine Vehicle Dynamics
• Webots Fluid Simulation

Educational Purpose: The Pirana USV simulation provides a platform for learning marine vehicle control, steerable propulsion systems, and autonomous navigation in realistic water environments with obstacle scenarios.
