WheelChair Example

Introduction

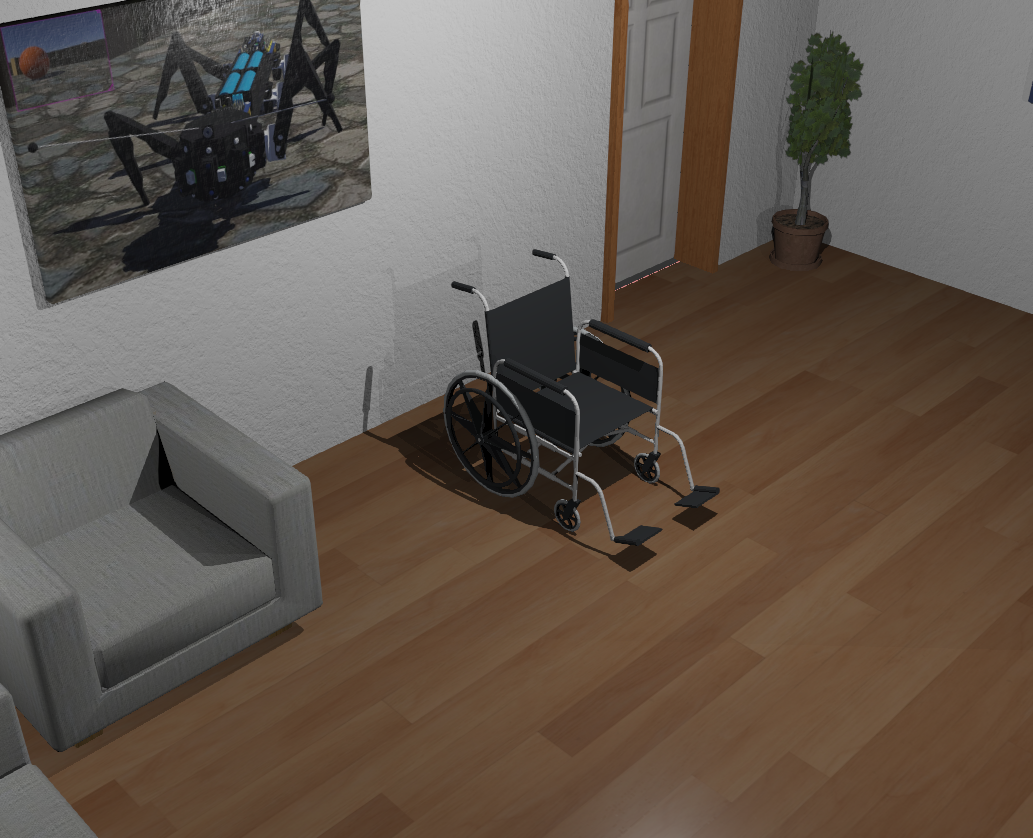

This tutorial demonstrates how to create a simulation for a motorized wheelchair using the Webots simulator and MATLAB/Simulink for control system design. The wheelchair model includes differential drive, obstacle detection sensors, and inertial measurement for navigation.

---

Overview

Property	Value
Type	Assistive Mobility Platform
Difficulty	Beginner
Control Method	Differential Drive / PID
Drive Type	Two-wheel differential
Sensors	IR distance, IMU, Camera

---

1. Project Structure

wheel_chair/
├── controllers/
│   ├── simulink_control_app/
│   │   ├── simulink_control_app.m        # Main MATLAB controller
│   │   ├── simulink_control.slx          # Simulink control model
│   │   ├── state_space_modeling.slx      # State-space model
│   │   ├── wb_motor_set_velocity.m       # Motor velocity control
│   │   ├── wb_motor_set_position.m       # Motor position control
│   │   ├── wb_motor_set_torque.m         # Motor torque control
│   │   ├── wb_gyro_get_values.m          # Gyroscope reading
│   │   ├── wb_accelerometer_get_values.m # Accelerometer reading
│   │   ├── wb_distance_sensor_get_value.m
│   │   ├── wb_inertial_unit_get_roll_pitch_yaw.m
│   │   └── wb_robot_step.m               # Simulation step
│   └── wheelchair_V1_C/
│       ├── wheelchair_V1_C.c             # C controller (obstacle avoidance)
│       └── Makefile
├── protos/
│   └── Wheelchair.wbo                    # Wheelchair model
└── worlds/
    └── WheelChair.wbt                    # Webots world file

---

2. Components

Physical Components

Component	Description
Wheels	Two drive wheels for differential steering
Motors	DC motors to drive each wheel independently
IR Sensors	Infrared distance sensors for obstacle detection
IMU	Inertial measurement unit (accelerometer + gyroscope)
Camera	Forward-facing camera for vision-based navigation

Sensor Configuration

Sensor	Webots Name	Purpose
Left IR Sensor	left_ir / left IR	Left obstacle detection
Right IR Sensor	right_ir / right IR	Right obstacle detection
Accelerometer	accelerometer	Linear acceleration measurement
Gyroscope	gyro	Angular velocity measurement
Inertial Unit	inertial_unit	Roll, pitch, yaw orientation
Camera	camera	Visual feedback

Actuators

Actuator	Webots Name	Control Mode
Left Motor	left_rotational_motor	Velocity control
Right Motor	right_rotational_motor	Velocity control
Left Position Sensor	left_position_sensor	Encoder feedback
Right Position Sensor	right_position_sensor	Encoder feedback

---

3. Differential Drive Kinematics

System Block Diagram

flowchart TB
    subgraph Reference["Reference Inputs"]
        R1[/"Velocity Command<br/>(v_d, ω_d)"/]
        R2[/"Joystick Input"/]
    end

    subgraph Control["Control System"]
        subgraph HighLevel["High-Level Control"]
            OA[Obstacle<br/>Avoidance]
            NAV[Navigation<br/>Controller]
        end
        subgraph LowLevel["Low-Level Control"]
            VC[Velocity<br/>Controller]
            PID_L[PID Left<br/>Wheel]
            PID_R[PID Right<br/>Wheel]
        end
    end

    subgraph Sensors["Sensor Suite"]
        IR_L[Left IR<br/>Sensor]
        IR_R[Right IR<br/>Sensor]
        IMU[IMU<br/>Accel + Gyro]
        ENC[Wheel<br/>Encoders]
        CAM[Camera]
    end

    subgraph Actuators["Drive System"]
        ML[Left<br/>Motor]
        MR[Right<br/>Motor]
    end

    subgraph Plant["WheelChair"]
        WC[Differential<br/>Drive Dynamics]
    end

    R1 --> NAV
    R2 --> NAV
    IR_L --> OA
    IR_R --> OA
    OA --> NAV
    NAV --> VC
    VC --> PID_L
    VC --> PID_R

    PID_L --> ML
    PID_R --> MR
    ML --> WC
    MR --> WC

    WC --> IR_L
    WC --> IR_R
    WC --> IMU
    WC --> ENC
    WC --> CAM

    IMU --> VC
    ENC --> PID_L
    ENC --> PID_R

    style Reference fill:#e1f5fe
    style Control fill:#e8f5e9
    style Sensors fill:#f3e5f5
    style Actuators fill:#ffebee
    style Plant fill:#fce4ec

State-Space Model Diagram

flowchart LR
    subgraph Inputs["Control Inputs u"]
        U1["v_L (Left Wheel)"]
        U2["v_R (Right Wheel)"]
    end

    subgraph StateSpace["State-Space Model<br/>ẋ = f(x,u)"]
        subgraph States["State Vector x"]
            S1["x - X Position [m]"]
            S2["y - Y Position [m]"]
            S3["θ - Heading [rad]"]
        end
    end

    subgraph Outputs["Outputs y"]
        Y1["Position (x, y)"]
        Y2["Orientation (θ)"]
    end

    Inputs --> StateSpace
    StateSpace --> Outputs

    style Inputs fill:#ffcdd2
    style StateSpace fill:#c8e6c9
    style Outputs fill:#bbdefb

Differential Drive Model

flowchart TB
    subgraph DiffDrive["Differential Drive Kinematics"]
        subgraph Forward["Forward Kinematics"]
            F1["ẋ = v·cos(θ)"]
            F2["ẏ = v·sin(θ)"]
            F3["θ̇ = ω"]
        end

        subgraph WheelVel["Wheel-Body Velocity"]
            W1["v = (v_R + v_L) / 2"]
            W2["ω = (v_R - v_L) / L"]
        end

        subgraph Inverse["Inverse Kinematics"]
            I1["v_L = v - (ω·L/2)"]
            I2["v_R = v + (ω·L/2)"]
        end
    end

    Forward --> WheelVel
    WheelVel --> Inverse

    style DiffDrive fill:#e8f5e9

State-Space Matrices

%% WheelChair State-Space Model
% Nonlinear kinematic model (differential drive)
% State vector: x = [x, y, theta]'
% Input vector: u = [v, omega]'

% Physical Parameters
L = 0.5;          % Wheelbase (wheel separation) [m]
r = 0.1;          % Wheel radius [m]
m = 100;          % Total mass (with user) [kg]
Iz = 15;          % Yaw moment of inertia [kg*m^2]

% Motor parameters
tau_motor = 0.1;  % Motor time constant [s]
K_motor = 10;     % Motor gain

% Velocity limits (safety)
v_max = 1.5;      % Maximum linear velocity [m/s]
omega_max = 1.0;  % Maximum angular velocity [rad/s]

% Kinematic model (nonlinear)
% dx/dt = v * cos(theta)
% dy/dt = v * sin(theta)
% dtheta/dt = omega

% Extended state-space with velocity dynamics
% State: [x, y, theta, v, omega]'
% Input: [v_cmd, omega_cmd]'

A = [0, 0, 0, 1, 0;
     0, 0, 0, 0, 0;
     0, 0, 0, 0, 1;
     0, 0, 0, -1/tau_motor, 0;
     0, 0, 0, 0, -1/tau_motor];

B = [0, 0;
     0, 0;
     0, 0;
     K_motor/tau_motor, 0;
     0, K_motor/tau_motor];

C = [1, 0, 0, 0, 0;
     0, 1, 0, 0, 0;
     0, 0, 1, 0, 0];

D = zeros(3, 2);

%% Wheel velocity conversion
function [v_left, v_right] = bodyToWheel(v, omega, L)
    v_left = v - omega * L / 2;
    v_right = v + omega * L / 2;
end

function [v, omega] = wheelToBody(v_left, v_right, L)
    v = (v_right + v_left) / 2;
    omega = (v_right - v_left) / L;
end

%% Velocity saturation for safety
function [v_sat, omega_sat] = saturateVelocity(v, omega, v_max, omega_max)
    v_sat = max(min(v, v_max), -v_max);
    omega_sat = max(min(omega, omega_max), -omega_max);
end

Obstacle Avoidance Architecture

flowchart TB
    subgraph ObstacleAvoid["Obstacle Avoidance System"]
        subgraph Sensing["IR Sensing"]
            IR_L[Left IR<br/>Sensor]
            IR_R[Right IR<br/>Sensor]
            THRESH["Threshold<br/>MIN_DT = 850"]
        end

        subgraph Decision["Decision Logic"]
            DET["Obstacle<br/>Detected?"]
            DIR["Direction<br/>Selection"]
        end

        subgraph Action["Avoidance Action"]
            TURN["Turn Away"]
            FWD["Continue<br/>Forward"]
        end
    end

    IR_L --> THRESH
    IR_R --> THRESH
    THRESH --> DET

    DET --> |Yes| DIR
    DET --> |No| FWD

    DIR --> |"LIR > RIR"| TURN
    DIR --> |"LIR < RIR"| TURN

    style ObstacleAvoid fill:#fff3e0

Velocity Control Loop

flowchart TB
    subgraph VelocityControl["Velocity Control System"]
        subgraph Linear["Linear Velocity"]
            V_D[/"v_d"/]
            V[/"v_actual"/]
            ERR_V((+<br/>-))
            PID_V[PID<br/>Kp=1.0, Ki=0.1, Kd=0.05]
        end

        subgraph Angular["Angular Velocity"]
            W_D[/"ω_d"/]
            W[/"ω_actual"/]
            ERR_W((+<br/>-))
            PID_W[PID<br/>Kp=1.0, Ki=0.1, Kd=0.05]
        end
    end

    subgraph WheelConvert["Wheel Velocity Conversion"]
        CONV["v_L = v - ωL/2<br/>v_R = v + ωL/2"]
    end

    V_D --> ERR_V
    V --> ERR_V
    ERR_V --> PID_V

    W_D --> ERR_W
    W --> ERR_W
    ERR_W --> PID_W

    PID_V --> CONV
    PID_W --> CONV

    style VelocityControl fill:#e3f2fd
    style WheelConvert fill:#fff8e1

Sensor Filtering

flowchart LR
    subgraph Filtering["Sensor Filtering"]
        subgraph LowPass["Low-Pass Filter (IMU)"]
            RAW_IMU["Raw IMU"]
            ALPHA["α = 0.85"]
            FILT_IMU["filtered = α·new + (1-α)·old"]
        end

        subgraph MovingAvg["Moving Average (IR)"]
            RAW_IR["Raw IR"]
            BUFFER["Buffer[5]"]
            AVG_IR["filtered = mean(buffer)"]
        end
    end

    RAW_IMU --> ALPHA
    ALPHA --> FILT_IMU

    RAW_IR --> BUFFER
    BUFFER --> AVG_IR

    style Filtering fill:#f3e5f5

Motion Equations

For a differential drive robot:

v = (v_R + v_L) / 2        # Linear velocity
ω = (v_R - v_L) / L        # Angular velocity

where:
  v_R = right wheel velocity
  v_L = left wheel velocity
  L = wheelbase (distance between wheels)

Wheel Velocities from Desired Motion

v_R = v + (ω * L) / 2
v_L = v - (ω * L) / 2

---

4. Control System Design

Design Considerations

To design a control system for the wheelchair, consider:

1. System Dynamics: Model the non-linear behavior including motor dynamics and friction
2. Available Sensors: IR distance sensors, accelerometer, gyroscope, and encoders
3. Desired Behavior: Forward motion, turning, obstacle avoidance
4. Physical Constraints: Motor limits, wheelchair dimensions, safety requirements

PID Control

PID control provides a balance between stability and responsiveness:

% PID controller for velocity tracking
Kp = 1.0;    % Proportional gain
Ki = 0.1;    % Integral gain
Kd = 0.05;   % Derivative gain

error = desired_velocity - actual_velocity;
integral = integral + error * dt;
derivative = (error - prev_error) / dt;

control_output = Kp * error + Ki * integral + Kd * derivative;

---

5. Controller Implementations

MATLAB/Simulink Controller

% simulink_control_app.m - Initialization
TIME_STEP = 16;
alpha_pitch = 0.85;  % Low-pass filter coefficient

% Initialize sensors
accelerometer_sensor = wb_robot_get_device('accelerometer');
wb_accelerometer_enable(accelerometer_sensor, TIME_STEP);

gyro_sensor = wb_robot_get_device('gyro');
wb_gyro_enable(gyro_sensor, TIME_STEP);

left_IR = wb_robot_get_device('left_ir');
right_IR = wb_robot_get_device('right_ir');
wb_distance_sensor_enable(left_IR, TIME_STEP);
wb_distance_sensor_enable(right_IR, TIME_STEP);

inertial_unit = wb_robot_get_device('inertial_unit');
wb_inertial_unit_enable(inertial_unit, TIME_STEP);

% Initialize motors
left_position_sensor = wb_robot_get_device('left_position_sensor');
left_rotational_motor = wb_robot_get_device('left_rotational_motor');

right_position_sensor = wb_robot_get_device('right_position_sensor');
right_rotational_motor = wb_robot_get_device('right_rotational_motor');

% Load Simulink model
open_system('simulink_control');
load_system('simulink_control');

C Controller (Obstacle Avoidance)

The C controller implements basic obstacle avoidance:

#define MAX_SP 4      // Maximum speed
#define MIN_DT 850    // Minimum distance threshold

int Obstacle_Detection(void) {
    int go_turn = 0;
    int LIR = wb_distance_sensor_get_value(left_IR);
    int RIR = wb_distance_sensor_get_value(right_IR);

    if (LIR < MIN_DT || RIR < MIN_DT)
        go_turn = 1;
    if (LIR > RIR)
        go_turn *= -1;

    return go_turn;
}

void Set_Direction(void) {
    if (turn == 0) {
        turn = Obstacle_Detection();
    } else {
        // Execute turn
        left_speed = MAX_SP * turn;
        right_speed = -MAX_SP * turn;
        // ... timing logic
    }
    wb_motor_set_velocity(left_motor, left_speed);
    wb_motor_set_velocity(right_motor, right_speed);
}

---

6. Control System Design Process

Step 1: Define Desired Behavior

• Moving forward at constant speed
• Turning left/right on command
• Automatic obstacle avoidance
• Smooth acceleration/deceleration

Step 2: Identify System Constraints

• Motor maximum velocity and torque
• Sensor range and accuracy
• Physical dimensions affecting turning radius
• Safety requirements (maximum speed)

Step 3: Implement Control Laws

Using PID control for smooth motion:

% Main control loop
while wb_robot_step(TIME_STEP) ~= -1
    % Read sensors
    left_dist = wb_distance_sensor_get_value(left_IR);
    right_dist = wb_distance_sensor_get_value(right_IR);
    orientation = wb_inertial_unit_get_roll_pitch_yaw(inertial_unit);

    % Obstacle avoidance
    if left_dist < threshold || right_dist < threshold
        % Execute avoidance maneuver
        [v_left, v_right] = avoid_obstacle(left_dist, right_dist);
    else
        % Normal operation
        [v_left, v_right] = compute_velocities(desired_v, desired_omega);
    end

    % Apply motor commands
    wb_motor_set_velocity(left_motor, v_left);
    wb_motor_set_velocity(right_motor, v_right);
end

Step 4: Evaluate Performance

Metrics to measure: - Tracking error (position and velocity) - Response time to obstacles - Smoothness of motion (jerk minimization) - Energy efficiency

Step 5: Optimize and Tune

• Adjust PID gains for desired response
• Use simulation to test edge cases
• Validate with real-world constraints

---

7. Quick Start

1. Open Webots and load examples/wheel_chair/worlds/WheelChair.wbt

2. Select controller:

3. simulink_control_app for MATLAB/Simulink control

4. wheelchair_V1_C for C-based obstacle avoidance

5. Run the simulation

6. Observe behavior:

7. Wheelchair navigates environment
8. Avoids obstacles using IR sensors
9. Maintains stable motion

---

8. Example Control Modes

Basic Manual Control

• Direct velocity commands to left and right motors
• Joystick-style interface

Automatic Navigation

• Goal-seeking behavior
• Path planning integration
• Waypoint following

Joystick Interface Integration

• Map joystick inputs to wheel velocities
• Apply velocity limits and smoothing
• Dead-zone handling for precision control

---

9. Sensor Filtering

Low-Pass Filter for IMU Data

% Filter coefficients
alpha = 0.85;

% Apply filter
filtered_pitch = alpha * new_pitch + (1 - alpha) * old_pitch;
filtered_roll = alpha * new_roll + (1 - alpha) * old_roll;

Distance Sensor Smoothing

% Moving average filter
window_size = 5;
distance_buffer = circshift(distance_buffer, 1);
distance_buffer(1) = new_reading;
filtered_distance = mean(distance_buffer);

---

10. Safety Considerations

• Speed Limits: Enforce maximum velocity for user safety
• Emergency Stop: Implement immediate stop functionality
• Obstacle Detection: Redundant sensors for reliability
• Smooth Control: Avoid sudden accelerations
• Battery Monitoring: Track power levels

---

References

• DrakerDG Webots Projects - Original wheelchair model
• Webots Documentation - Differential Wheels
• MathWorks - Mobile Robot Kinematics
