Customizing the Bridge¶

This guide explains how to adapt the Webots-Simulink Bridge for custom robot models and sensors.

Overview¶

The bridge connects Webots and Simulink through MATLAB functions that wrap the Webots API. To use a custom robot, you need to:

Define device variables for sensors and actuators
Create MATLAB wrapper functions
Build Simulink blocks that use these functions

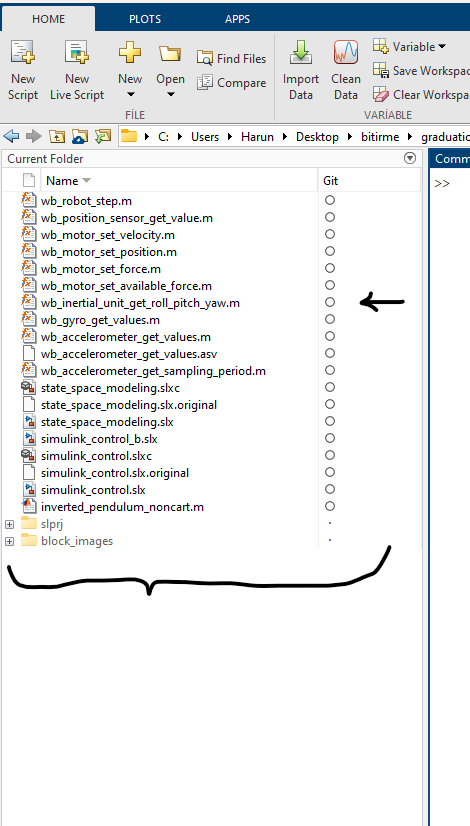

connecting1

Adding Custom Sensors¶

Step 1: Define Sensor Variables¶

Create variables in MATLAB to store device handles:

% Get device handles from Webots
lidar = wb_robot_get_device('lidar');
camera = wb_robot_get_device('camera');
distance_sensor = wb_robot_get_device('distance_sensor');
touch_sensor = wb_robot_get_device('touch_sensor');

% Enable sensors with sampling period
TIME_STEP = 16;
wb_lidar_enable(lidar, TIME_STEP);
wb_camera_enable(camera, TIME_STEP);
wb_distance_sensor_enable(distance_sensor, TIME_STEP);
wb_touch_sensor_enable(touch_sensor, TIME_STEP);

Step 2: Create Wrapper Functions¶

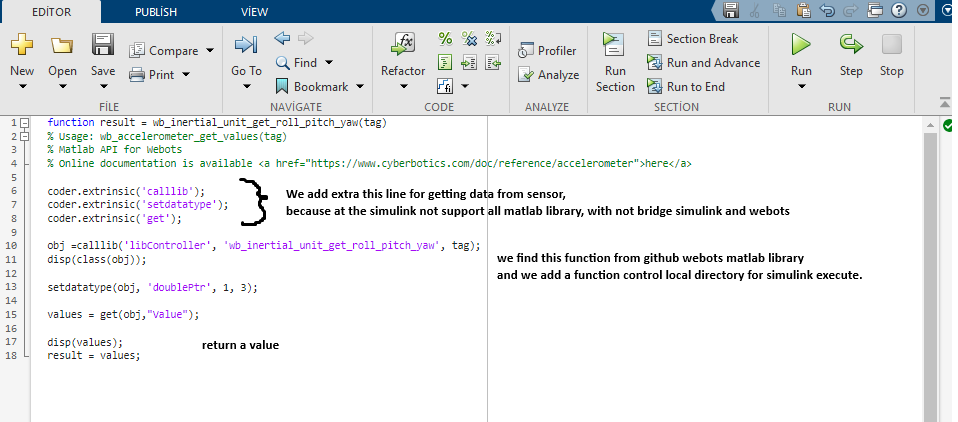

connecting2

Create MATLAB functions to read sensor values:

function range_data = read_lidar(lidar)
    % Read LiDAR range data
    range_data = wb_lidar_get_range_image(lidar);
end

function image = read_camera(camera)
    % Read camera image
    image = wb_camera_get_image(camera);
end

function distance = read_distance_sensor(sensor)
    % Read distance sensor value
    distance = wb_distance_sensor_get_value(sensor);
end

Step 3: Create Simulink Blocks¶

Add MATLAB Function blocks in Simulink to call your wrapper functions:

function y = fcn(sensor_handle)
    y = read_distance_sensor(sensor_handle);
end

Adding Custom Actuators¶

Motor Configuration¶

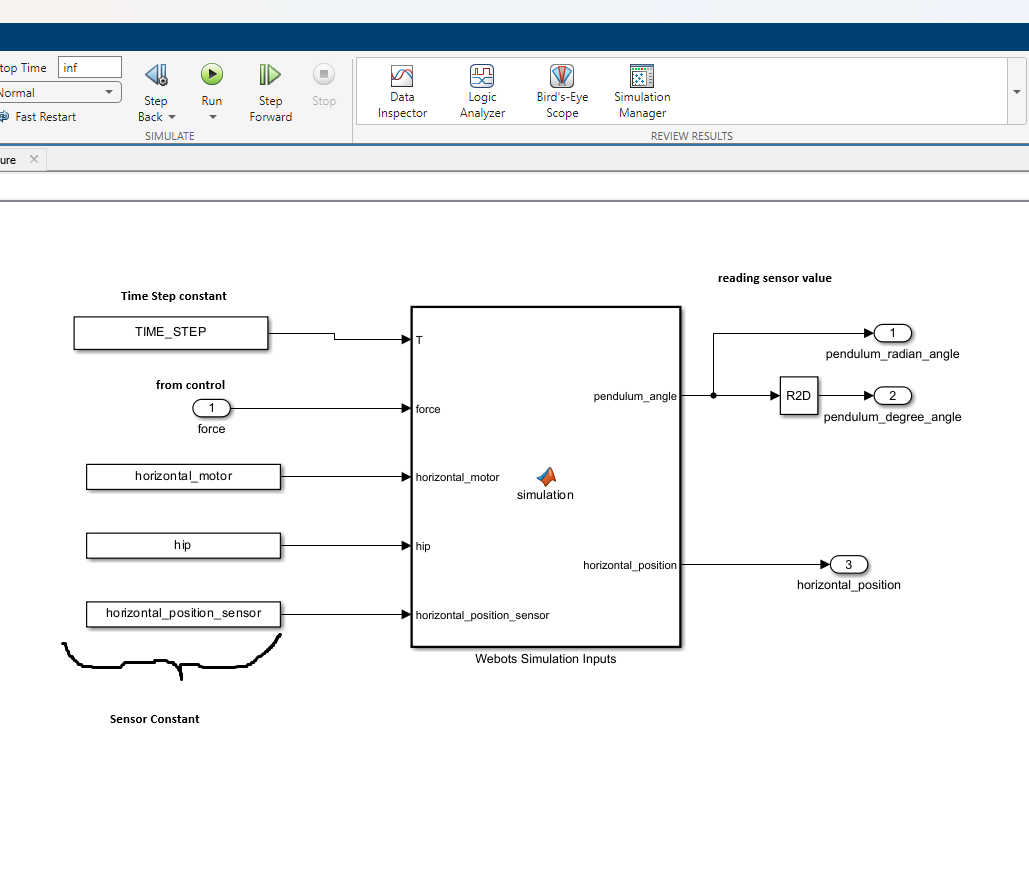

connecting3

Configure motors for different control modes:

% Get motor handles
motor1 = wb_robot_get_device('motor1');
motor2 = wb_robot_get_device('motor2');

% Velocity control mode
wb_motor_set_position(motor1, inf);  % Disable position control
wb_motor_set_velocity(motor1, 0);     % Initial velocity

% Position control mode
wb_motor_set_velocity(motor2, inf);  % Disable velocity limit
wb_motor_set_position(motor2, 0);    % Initial position

% Torque control mode
wb_motor_set_torque(motor1, 0);      % Direct torque control

Actuator Wrapper Functions¶

function set_motor_velocity(motor, velocity)
    % Set motor velocity (rad/s)
    wb_motor_set_velocity(motor, velocity);
end

function set_motor_position(motor, position)
    % Set motor position (rad)
    wb_motor_set_position(motor, position);
end

function set_motor_torque(motor, torque)
    % Set motor torque (N·m)
    wb_motor_set_torque(motor, torque);
end

Sensor Reference Table¶

Sensor Type	Enable Function	Get Value Function
GPS	`wb_gps_enable(gps, ts)`	`wb_gps_get_values(gps)`
IMU	`wb_inertial_unit_enable(imu, ts)`	`wb_inertial_unit_get_roll_pitch_yaw(imu)`
Gyroscope	`wb_gyro_enable(gyro, ts)`	`wb_gyro_get_values(gyro)`
Accelerometer	`wb_accelerometer_enable(acc, ts)`	`wb_accelerometer_get_values(acc)`
LiDAR	`wb_lidar_enable(lidar, ts)`	`wb_lidar_get_range_image(lidar)`
Camera	`wb_camera_enable(cam, ts)`	`wb_camera_get_image(cam)`
Distance Sensor	`wb_distance_sensor_enable(ds, ts)`	`wb_distance_sensor_get_value(ds)`
Touch Sensor	`wb_touch_sensor_enable(ts, ts)`	`wb_touch_sensor_get_value(ts)`
Position Sensor	`wb_position_sensor_enable(ps, ts)`	`wb_position_sensor_get_value(ps)`
Compass	`wb_compass_enable(comp, ts)`	`wb_compass_get_values(comp)`

Actuator Reference Table¶

Actuator Type	Set Function	Description
Motor (Velocity)	`wb_motor_set_velocity(motor, vel)`	Set angular velocity (rad/s)
Motor (Position)	`wb_motor_set_position(motor, pos)`	Set target position (rad)
Motor (Torque)	`wb_motor_set_torque(motor, tau)`	Set torque (N·m)
LED	`wb_led_set(led, value)`	Turn LED on/off
Display	`wb_display_draw_pixel(display, x, y)`	Draw on display
Speaker	`wb_speaker_play_sound(speaker, ...)`	Play audio

Simulink Integration¶

Constant Blocks for Parameters¶

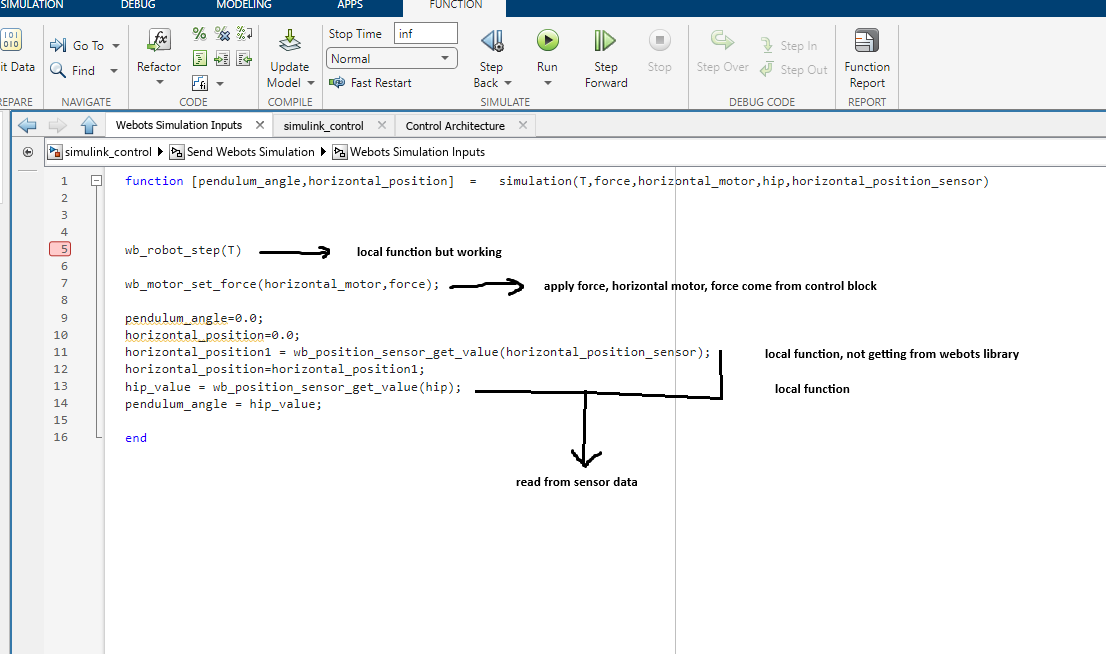

connecting4

Use Constant blocks to pass device handles and parameters:

% In MATLAB workspace before simulation
TIME_STEP = 16;
gps_handle = wb_robot_get_device('gps');
motor_handle = wb_robot_get_device('motor');

MATLAB Function Block Template¶

function [position, velocity] = sensor_block(gps, imu, TIME_STEP)
    % Persistent variable for previous position
    persistent prev_position;
    if isempty(prev_position)
        prev_position = [0; 0; 0];
    end

    % Read current position
    position = wb_gps_get_values(gps);

    % Calculate velocity
    velocity = (position - prev_position) / (TIME_STEP / 1000);

    % Update previous position
    prev_position = position;
end

Custom Robot Template¶

Complete template for adding a new robot:

%% Robot Initialization
function init_robot()
    % Time step
    TIME_STEP = 16;

    % Initialize Webots
    wb_robot_init();

    %% Sensors
    % GPS
    gps = wb_robot_get_device('gps');
    wb_gps_enable(gps, TIME_STEP);

    % IMU
    imu = wb_robot_get_device('inertial unit');
    wb_inertial_unit_enable(imu, TIME_STEP);

    % Gyroscope
    gyro = wb_robot_get_device('gyro');
    wb_gyro_enable(gyro, TIME_STEP);

    %% Actuators
    % Motors
    motor_left = wb_robot_get_device('left_motor');
    motor_right = wb_robot_get_device('right_motor');

    % Configure for velocity control
    wb_motor_set_position(motor_left, inf);
    wb_motor_set_position(motor_right, inf);
    wb_motor_set_velocity(motor_left, 0);
    wb_motor_set_velocity(motor_right, 0);

    %% Load Simulink Model
    model_name = 'custom_controller';
    load_system(model_name);
    open_system(model_name);

    %% Main Loop
    while wb_robot_step(TIME_STEP) ~= -1
        % Simulation step handled by Simulink
    end

    %% Cleanup
    wb_robot_cleanup();
end

Best Practices¶

Practice	Description
Use consistent TIME_STEP	Ensure Webots and Simulink use the same time step
Initialize sensors early	Enable all sensors before the main loop
Handle device errors	Check if `wb_robot_get_device()` returns valid handles
Use persistent variables	Store state between function calls in Simulink
Modularize code	Create separate functions for each sensor/actuator

Next Steps¶

Debugging: Troubleshoot issues with custom configurations
ROS 2 Export: Export your customized controller as a ROS 2 package
